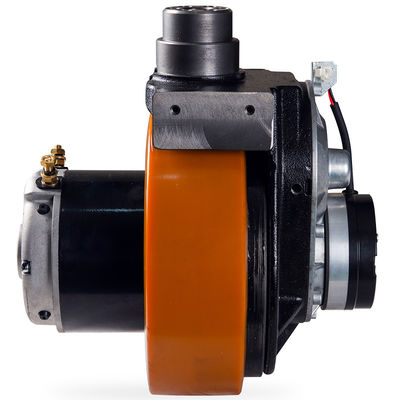

Taizhou Kayond Machinery Co.,Ltd
| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | KAD |
| Certification: | CE |
| Model Number: | KAD65-DCY |
| Minimum Order Quantity: | 1 unit |
| Price: | $180-$220 |
| Packaging Details: | plywood case |
| Delivery Time: | In stock |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000units/month |
| Voltage: | 24v | Power: | 0.65kw |
|---|---|---|---|
| Rated Speed: | 2250r/min | Wheel Size: | 210*80mm |
| Max.wheel Load: | 1000kg | Motor: | DC |
| Highlight: | 2250rpm Metalrota drive wheel,0.65kw Metalrota drive wheel,2250rpm Motor Drive Wheel Assembly |
||
Electric steering system
1. Only when turning, the motor is required to provide energy, saving energy and reducing consumption.
2. The size of steering power can be adjusted by software, which can take into account the steering portability at low speed and the handling stability at high speed, with good return performance.
3. Compact structure, light weight, well assembled production line, easy to maintain.
Double guide pillar suspension damping structure
1. It is applicable to two kinds of horizontal and vertical driving wheels at the same time, which is firm and reliable, with long service life.
2. The device saves assembly space, is easy to install and debug, and is convenient for maintenance.
3. Enhance the wheel's grip on the ground to make the vehicle run more smoothly and efficiently.
| Model | / | KAD65-DCW |
| Voltage | VDC | 24 |
| Output power | W | 650 |
| Rated current | A | 38±10% |
| Rated speed | rpm |
2400±10% |
| Rated torque | N.m | 2.6 |
| No loading current | A | ≤11 |
| No loading speed | Rpm | 3000±10% |
| Brush life | H | 1200 |
| Brake Voltage | VDC | 24 |
| Brake Torque | N.m | 6 |
| Using temperature | ° | -10~+40 |
| Noise | dB | <65 |
| Protection Grade | / | IP44 |
