Taizhou Kayond Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Taizhou KAD Electromechanical Co., Ltd. |
| Certification: | CE |
| Model Number: | VNA10 |
| Minimum Order Quantity: | 1 Unit |
| Price: | 21000-23000＄ |
| Packaging Details: | iron pallet and plastic package of side pull type battery 2t Narrow aisles 3 way vna forklift electric stacker forklift with AC motor |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 Units |
| Load Capacity: | 1,000-2,000kg | Lift Height: | 3,000-7,000mm |
|---|---|---|---|
| Drive System: | AC Motor | Braking System: | Hydraulic |
| Price Range: | $21,000-$23,000 | Durability: | High Durability |
| Operator Comfort: | Ergonomic Design | Power Source: | Electric |
| Product Name: | VNA Forklift | Steering System: | Hydraulic |
| Transmission: | Automatic | Warranty: | 1 Year |
| Highlight: | ac motor vna forklift truck,2t vna forklift truck,side pull type battery vna truck |
||

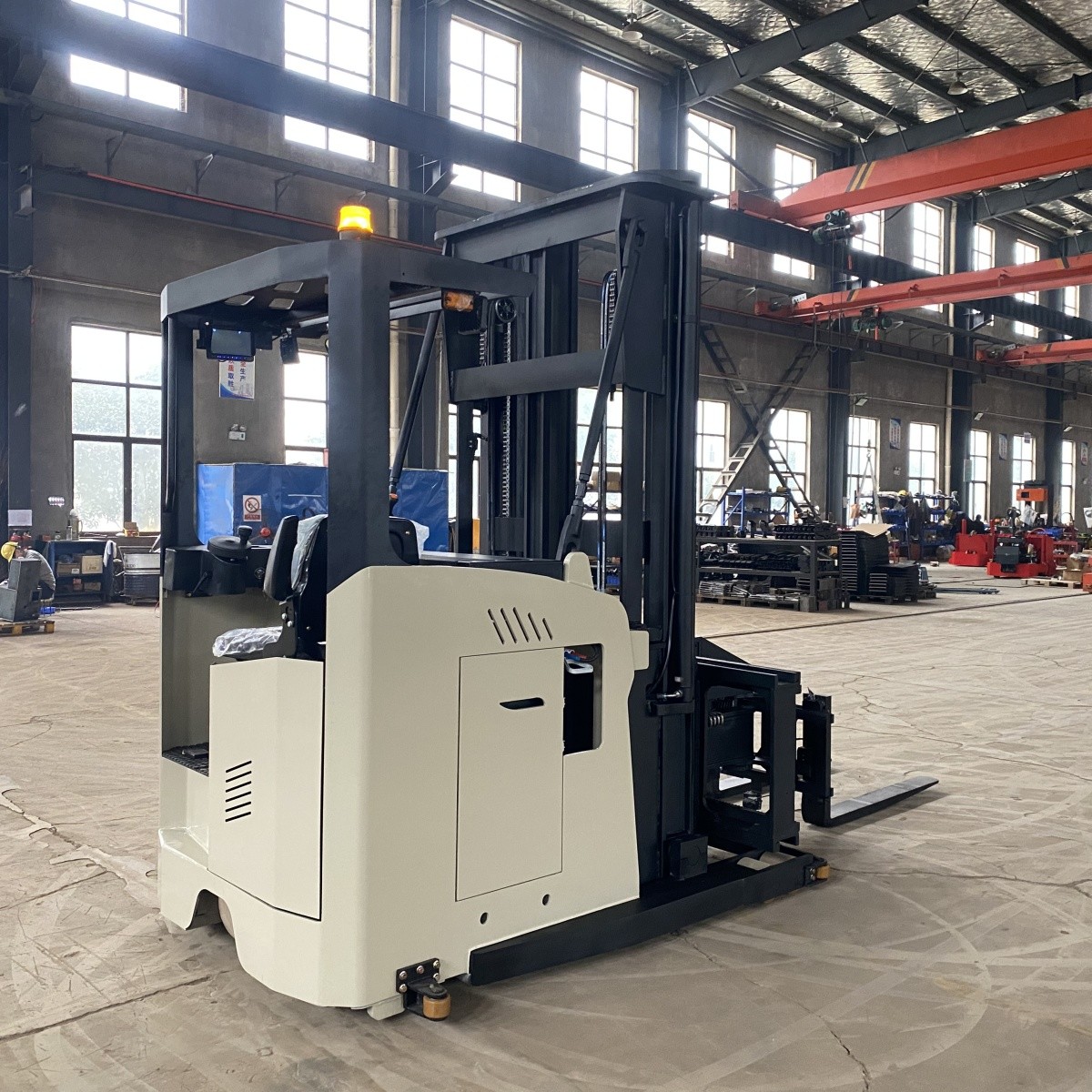

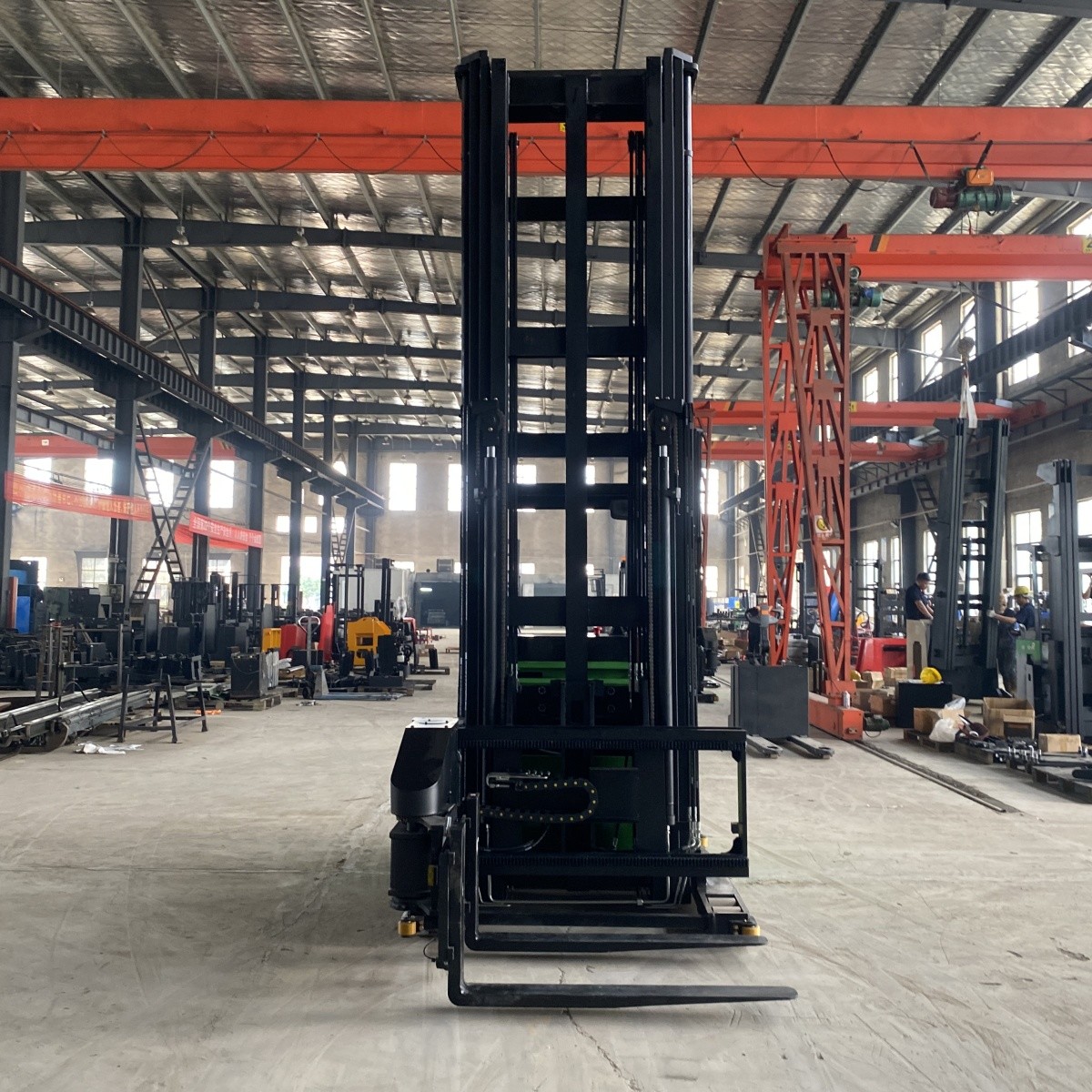

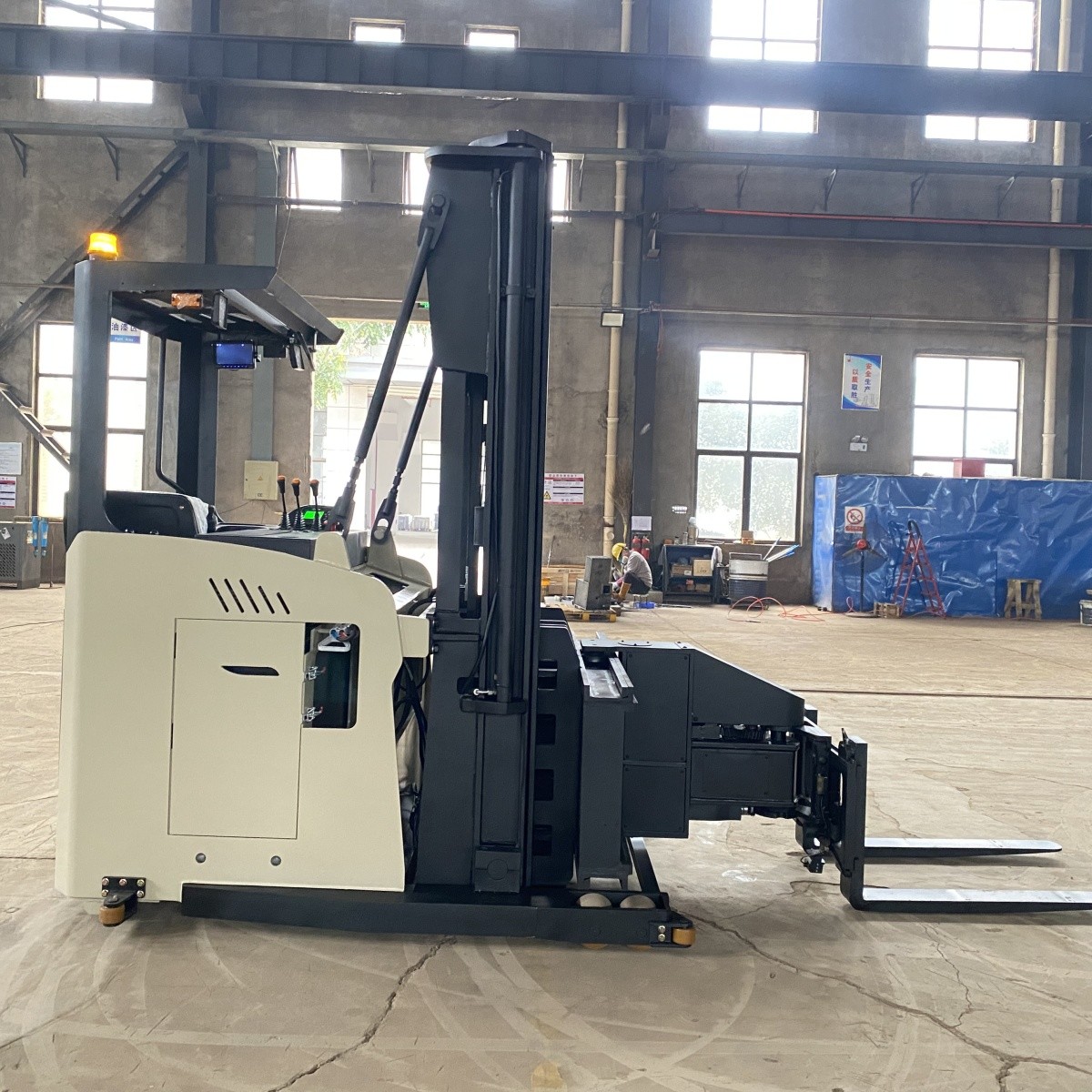

Side Pull Type Battery Vna Forklift Truck 2t With Ac Motor
side pull type battery 2t Narrow aisles 3 way vna forklift electric stacker forklift with AC motor
Ultra Narrow Channel (VNA) forklifts are revolutionizing warehouse operations with their space saving design and enhanced mobility. These specialized forklifts are designed to operate in extremely narrow aisles, allowing the warehouse to maximize storage capacity.
| Standard | |||
| 1.1 | Manufacturer | KAD | |
| 1.2 | Model | VNA10 VAN15 VNA20 | |
| 1.3 | Power type | Battery | |
| 1.4 | Operation type | Sit-down | |
| 1.5 | Rated capacity | Q(kg) | 1000 / 1500/ 2000 |
| 1.6 | Load center | c(mm) | 600 |
| 1.7 | Front overhang | x(mm) | 670 |
| 1.8 | Wheelbase | y(mm) | 1700 |
| Weight | |||
| 2.1 | Service weight(incl. battery) | 5520 | |
| Tire | |||
| 3.1 | Wheel type,drive side/load side | PU | |
| 3.2 | Tyre size,load side | mm | 140 ×127 |
| 3.3 | Tyre size,drive side | mm | P380×165 |
| 3.4 | Balance wheel size | mm | $204×76 |
| 3.5 | Wheel quantity,front/rear(x= drive) | 4/1x+2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 726 |
| 3.7 | Wheel tread,load side | b11(mm) | 1280 |
| Dimension | |||
| 4.1 | Height of mast closed | h1(mm) | 4318 |
| 4.2 | Full free lifting height | h2(mm) | 3255 |
| 4.3 | The Max. lifting height | h3(mm) | 7500 |
| 4.4 | Height of mast with backrest | h4(mm) | 8550 |
| 4.5 | Overhead guard height | h6(mm) | 2300 |
| 4.6 | Station board height | h7(mm) | 355 |
| 4.7 | Overall length | l1(mm) | 2985 |
| 4.8 | Overall width | b1(mm) | 1550 |
| 4.9 | fork dimentions | l/e/s(mm) | 1200/125/50 |
| 4.1 | Installation level | ll Level A Model | |
| 4.11 | Width across forks | b5(mm) | 265~760 |
| 4.12 | minimum guound clearance | m1(mm) | 40 |
| 4.13 | Stacking channel width (pallet 1000x1000) | Ast(mm) | 1600 |
| 4.14 | Stacking channel width (pallet 1000x1200) | Ast(mm) | 1650 |
| 4.15 | Spacing of rack beams | mm | 1700 |
| 4.16 | Width of main aisle | mm | 3800 |
| 4.17 | Turning radius | Wa(mm) | 1980 |
| Function | |||
| 5.1 | Drive speed, load/unload | km/h | 7.5/8 |
| 5.2 | Lift speed, load/unload | mm/s | 200/250 |
| 5.3 | Lower speed, load/unload | mm/s | 340/340 |
| 5.4 | Brake type | Mechanical | |
| Driving | |||
| 6.1 | Driving motor power(S2-60min) | kw | 5.5 AC |
| 6.2 | Lifting motor power(S315%) | kw | 8.6 AC |
| 6.3 | Battery voltage/capacity | V/Ah | 24/560 |
| 6.4 | Battery weight | kg | 740 |
| 6.5 | Steering system | EPS | |
| Other | |||
| 7.1 | Battery replace method | Side pull type | |
When choosing a narrow aisle three way forklift, the following points should be noted:
1. Choose the appropriate model according to actual needs, taking into account factors such as operating space, cargo size, and warehouse height.
2. Choose reliable brands and suitable suppliers, and require them to have good after-sales service and maintenance support.
3. Understand the battery life and charging time of forklifts, providing reference for warehouse operation plans.
4. Consider advanced technology and intelligent management systems to improve work efficiency and reduce operating costs.
Taizhou KAD Electromechanical Co., Ltd, has rich experience in VAN forklift manufacturing and is committed to providing customers with cost-effective products and services.
