Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | KLD05-H |
Minimum Order Quantity: | 1 unit |
Price: | $1650-$1800 /unit |
Packaging Details: | Iron pallet+plastic film |
Delivery Time: | 20 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Type: | Powered Pallet Stacker | Load Center: | 500mm |
---|---|---|---|
Place Of Origin: | CN;JIA | Loading Capacity: | 500kg |
Color: | Customer Demanded | After-sales Service Provided: | 24h Online Support |
Lifting Height: | 1300mm | Warranty: | 1 Year |
Power: | 60ah | ||
Highlight: | 500kg semi electric pallet stacker,1000kg semi electric pallet stacker,1300 Mm semi electric pallet stacker |

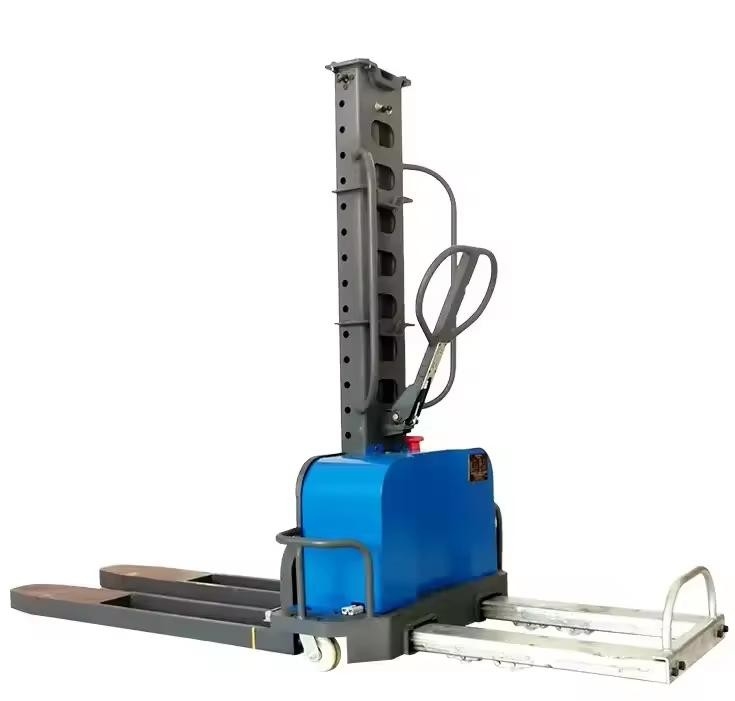

500kg 1000kg 1300 mm Semi Electric Portable Stacker Self loading Forklift for container use
The self-loading forklift offers distinct advantages in material handling, combining versatility and efficiency. Its ability to load and unload itself without additional equipment significantly reduces the need for manual labor and extra machinery, streamlining operations. This capability enhances productivity by allowing quick and easy movement of materials across various job sites. Its compact design ensures maneuverability in tight spaces, while the robust build provides durability for heavy-duty tasks. Additionally, the forklift's versatility in handling different types of loads makes it an ideal choice for industries requiring flexible, on-the-go solutions, such as construction, logistics, and warehousing.

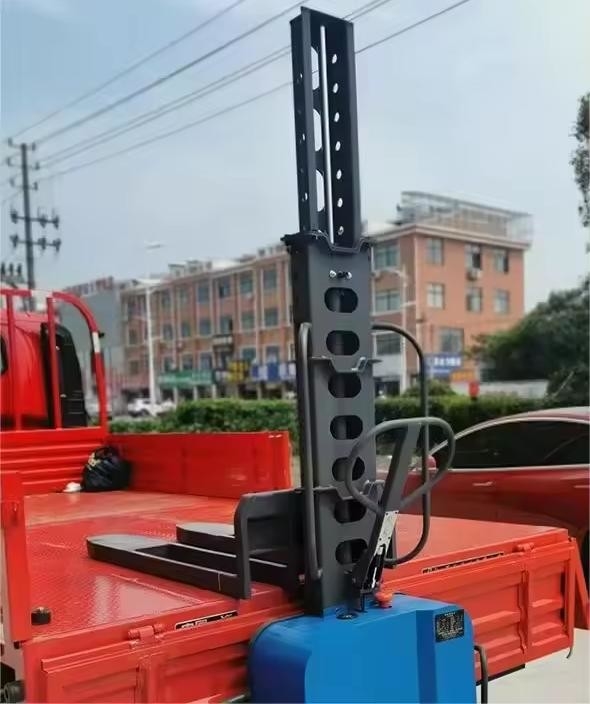

1. It can be boarded with the goods which is very convenient to make full use of its advantages.
2. Sealed cylinder
3. Reinforced forks make the carrying capacity stronger.
4. Using composite chain and thickened door frame.
5. Equipped with emergency stop switch button and maneuverable handle.
Load capacity
|
kg
|
500
|
Load center distance
|
mm
|
500
|
Weight with battery
|
kg
|
245
|
Lifting height
|
mm
|
1300
|
Lifting speed without load
|
mm/s
|
140
|
Lifting speed with load
|
mm/s
|
135
|
Lowering speed without load
|
mm/s
|
140
|
Lowering speed with load
|
mm/s
|
145
|
Overall Length
|
mm
|
1558
|
Overall width
|
mm
|
850
|
Gantry lowered to lowest overall height
|
mm
|
1630
|
Door frame up to maximum overall height
|
mm
|
2880
|
Wheelbase
|
mm
|
959
|
Fork length
|
mm
|
1160
|
Outer fork width
|
mm
|
535
|
Inside fork width
|
mm
|
225
|
Fork thickness
|
mm
|
60
|
Minimum ground clearance
|
mm
|
20
|
Fork height when lowered to the lowest level
|
mm
|
90
|
Minimum turning radius
|
mm
|
1000
|
Carrier Wheel
|
mm
|
80*50
|
Steering Wheel
|
mm
|
100*50
|
Lifting motor type
|
|
DC motor
|
Wattage
|
kw
|
0.8
|
Voltage
|
V
|
12.8
|
Capacity
|
AH
|
60
|
Support legs
Retractable, self-boarding
Cylinder
Double linkage cylinder assembly, locking and lifting alternating movement
Movable door
Swinging guide wheels under the movable door seat for smooth entry of the bodywork into the compartment
