Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CDD1530 |
Minimum Order Quantity: | 1unit |
Price: | $2000-$3000 /unit |
Packaging Details: | Iron pallet+plastic film |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500units/month |
Color: | Red/Customized | Product Name: | Electric Forklift |
---|---|---|---|
Load Center: | 500mm | Load Capacity: | 1000-1500kg |
Load Height: | 3000mm | Feature: | High Efficiency |
Battery Cpacity: | 24V/210Ah | ||
Highlight: | 2000kg Electric Pallet Stacker,Full Electric Pallet Stacker,1500kg Electric Pallet Stacker |

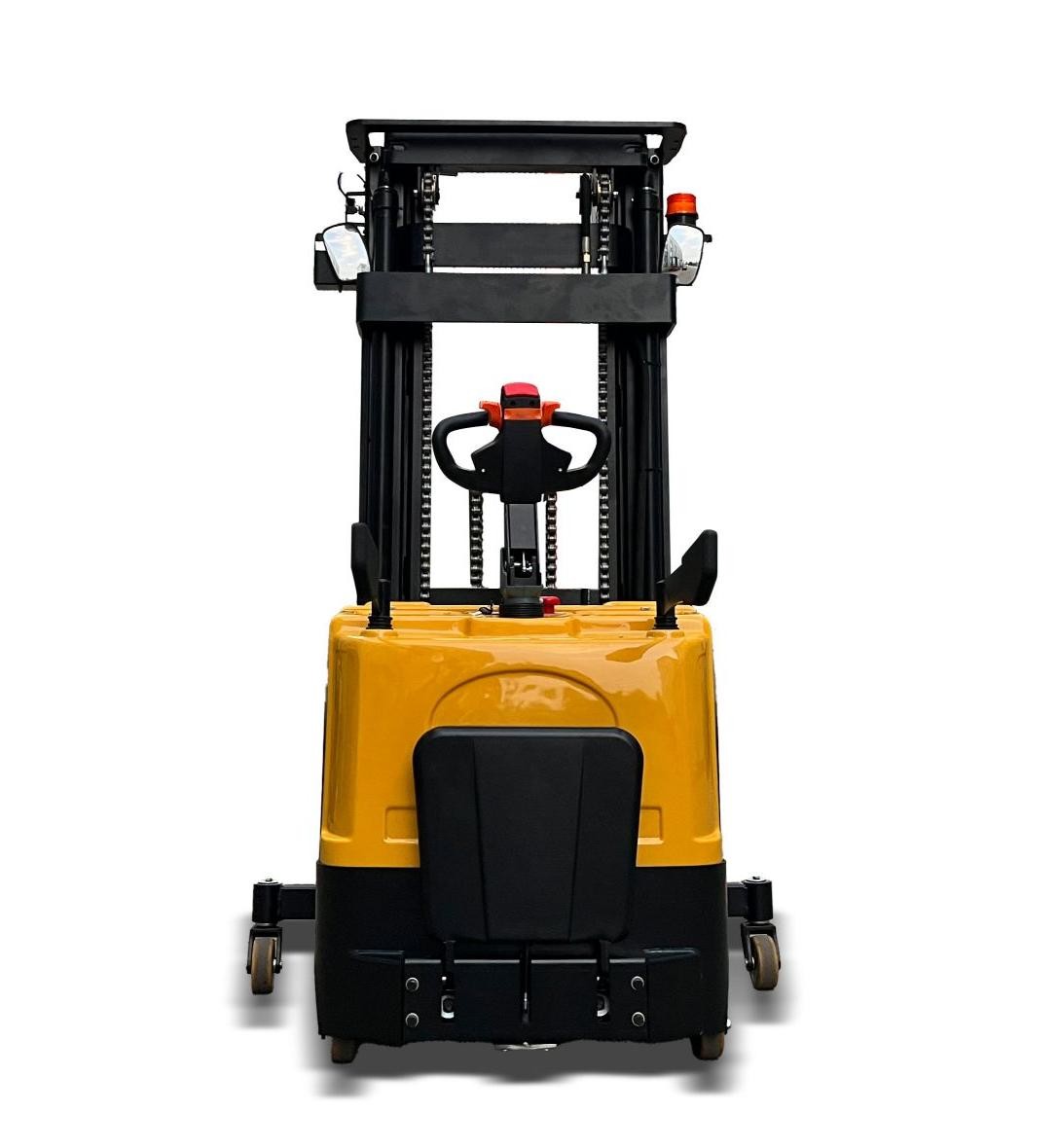

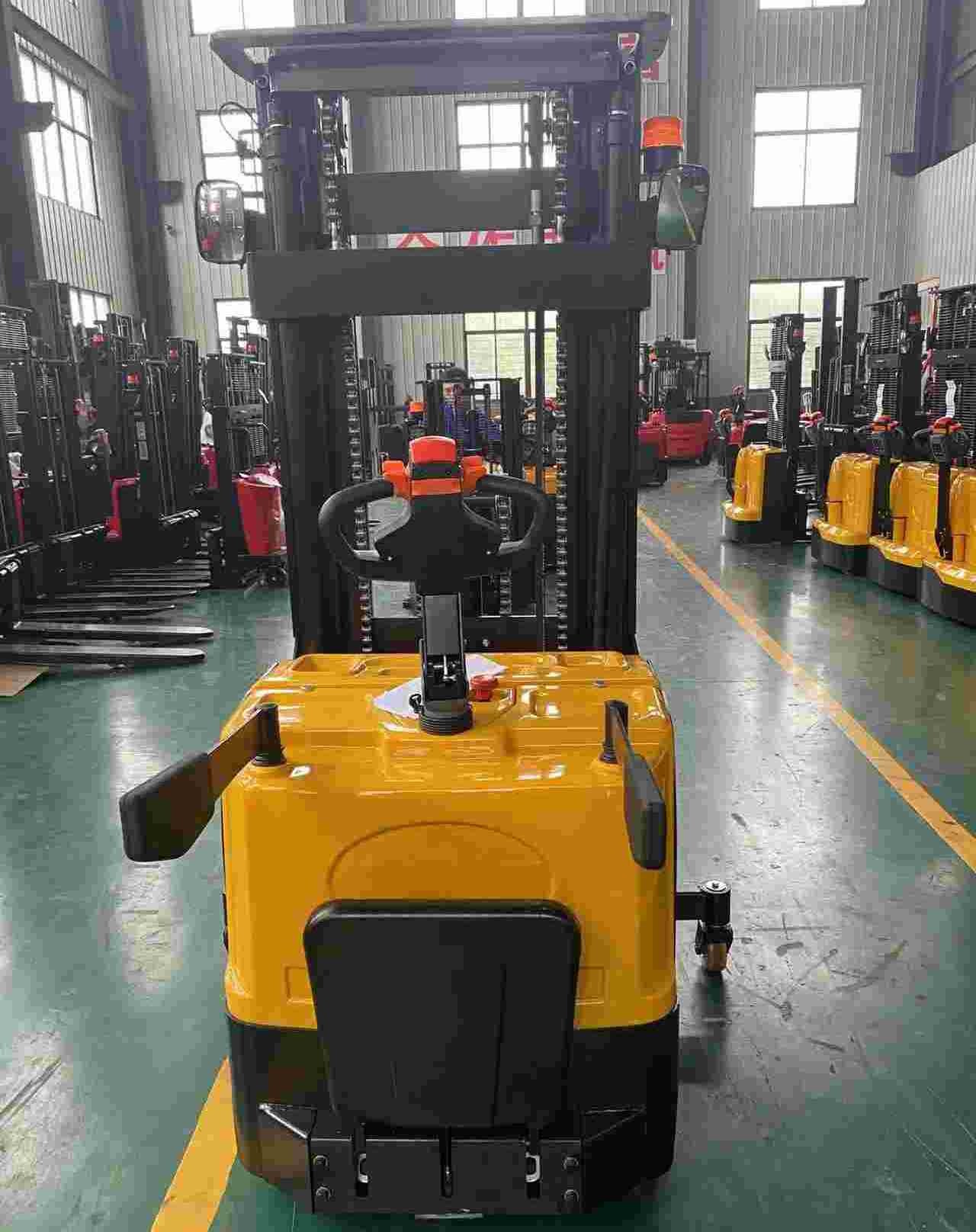

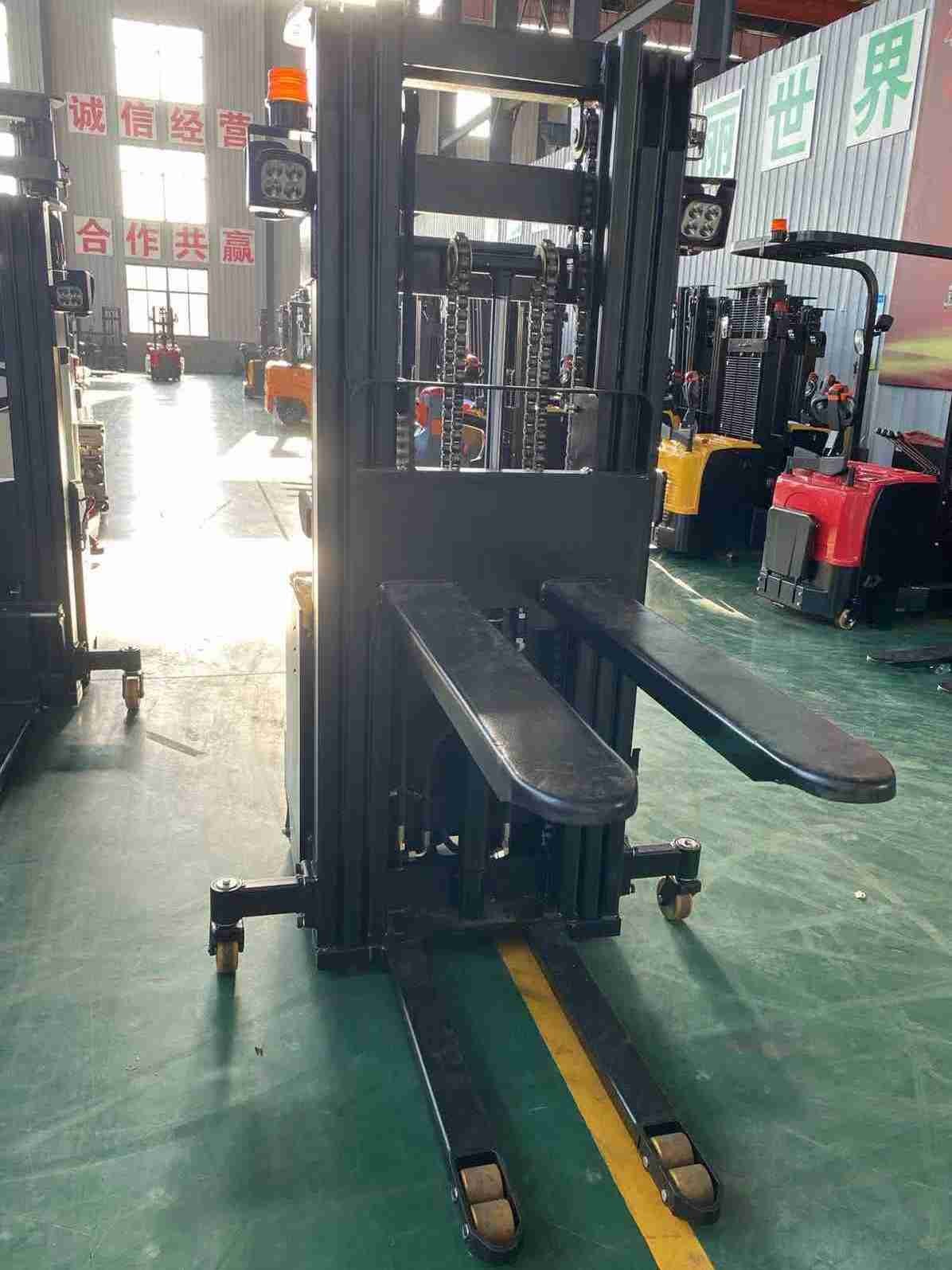

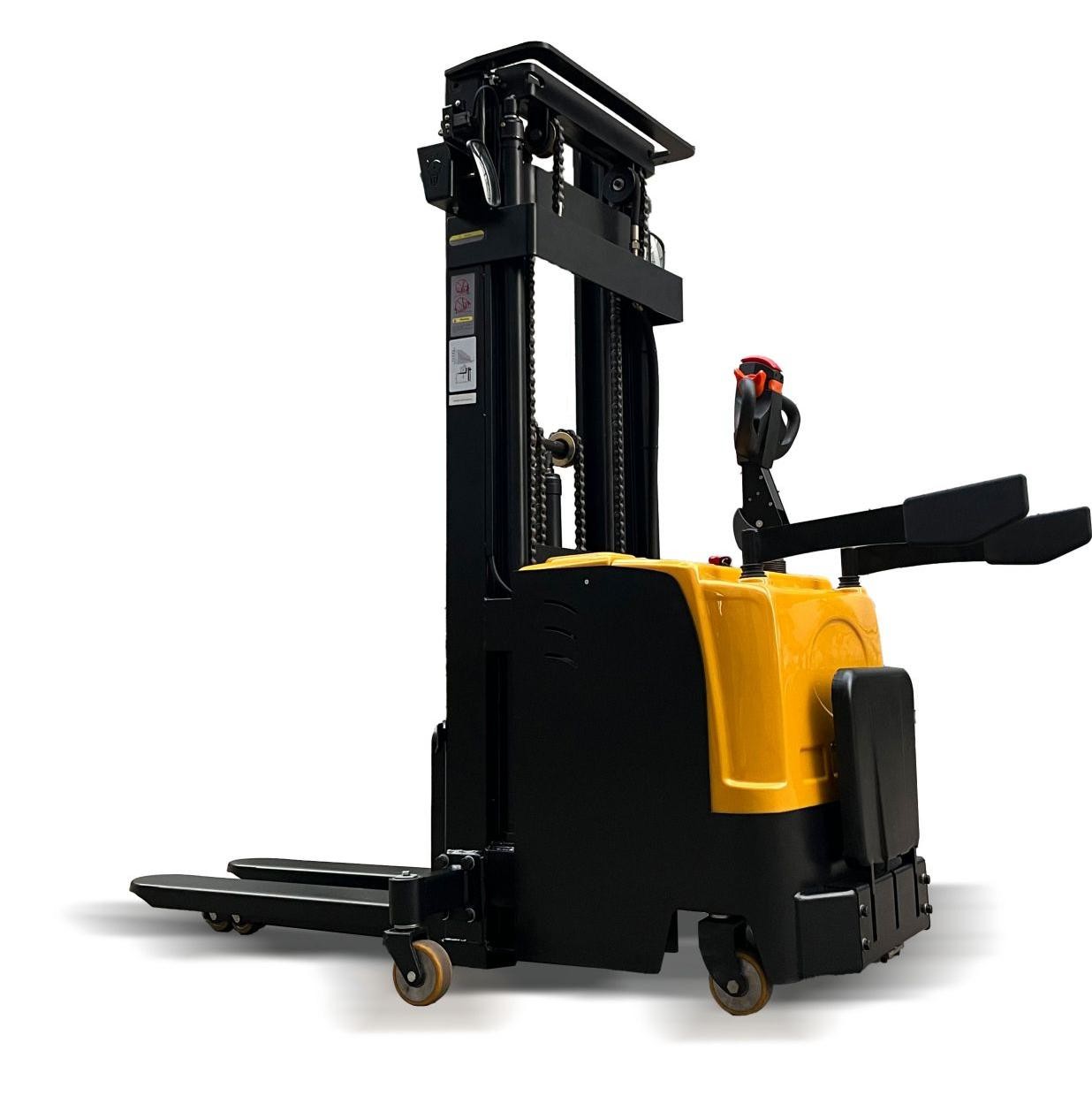

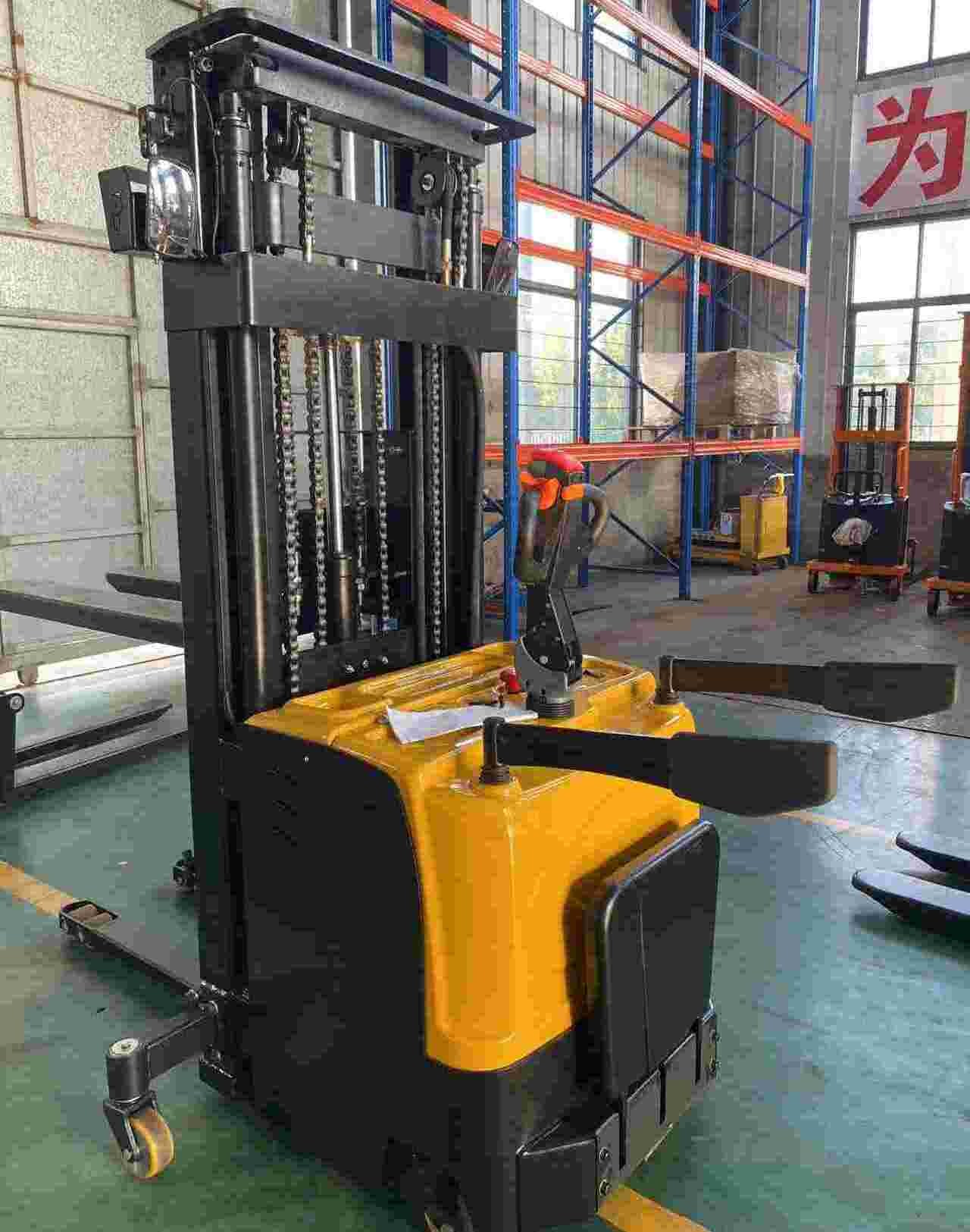

Heavy Duty 1500kg 2000kg Full Electric Pallet Stacker Battery Powered Forklift with 1500mm Lift Height and CE Certified for Small Warehouse Use
The Heavy Duty 1500kg-2000kg Full Electric Pallet Stacker is designed for efficient material handling in small warehouses. With a powerful battery-powered system, it offers quiet, eco-friendly operation and reduced maintenance costs compared to traditional fuel-powered forklifts. The stacker provides a 1500mm lift height, ideal for stacking pallets and organizing shelves in tight spaces. Its compact design allows for easy maneuverability in narrow aisles, maximizing warehouse space. Equipped with CE certification, it ensures high safety standards and reliability. This stacker is perfect for businesses looking for a cost-effective, durable, and safe solution for day-to-day material handling tasks.
1. Medium intensity material handling, stacking and loading/unloading.
2. Designed for narrow aisles .
3. Only suitable for single-sided pallet use.
4. High-strength vertical gearbox improves transmission efficiency, reduces transmission noise, and has a long working life.
5. Folding pedals provide a comfortable working environment for operation.
6. Large-capacity battery ensures long time use.
MODEL
|
|
|
CDD12 CDD16 CDD20
|
|
Features
|
Drive system
|
|
|
Battery
|
Driving mode
|
|
|
Standing
|
|
Load Capacity
|
Q
|
KG
|
1200/1600/2000
|
|
Load Center
|
C
|
MM
|
500
|
|
Weight
|
Weight(With battery)
|
|
KG
|
830/880/910/940/970
|
Wheels
|
Material
|
|
|
PU
|
Size
|
Lifting Height
|
H3
|
MM
|
1600/2000/2500/3000/3500/4000/5000
|
Lowest Mast
|
H1
|
MM
|
2080/1580/1830/2080/2330/1820/2020
|
|
Max.Height
when operating |
H4
|
MM
|
2080/2730/3230/3730/4230/4460/4960
|
|
Min.Height of Fork
|
H13
|
MM
|
≤90
|
|
Length
|
L1
|
MM
|
2130
|
|
Width
|
B1
|
MM
|
850
|
|
Fork Length
|
L
|
MM
|
1070
|
|
Wheelbase
|
Y
|
MM
|
1430
|
|
Fork Outside Width
|
B5
|
MM
|
550/680
|
|
Fork Inside Width
|
|
MM
|
225/355
|
|
Min.Turning Radius
|
WA
|
MM
|
1738/2099
|
|
Performance
|
Driving Speed
(Empty/Full Load) |
|
MM/S
|
6.5/5.0
|
Lifting Speed
(Empty/Full Load) |
|
MM/S
|
80/50
|
|
Descending Speed
(Empty/Full Load) |
|
MM/S
|
120
|
|
Max.Gradient
(Empty/Full Load) |
|
°
|
6
|
|
Brake
|
|
|
Electromagnetic brake
|
|
|
Driving Motor
|
|
KW
|
DC/0.75/1.2/1.5
|
Lifting Motor
|
|
KW
|
DC/2
|
|
Battery
|
Capacity
|
|
V/Ah
|
24//210
|
Features of lightweight electric pallet stackers
The structure of electric pallet stacker is relatively simple and flexible in maneuvering. It is suitable for operation in narrow passages and limited space, and is an important vehicle equipment for warehouses, supermarkets, loading, unloading and stacking palletized goods.
1. energy efficient: the use of electric power drive, not only can improve work efficiency, but also can save energy.
2. Flexible: the equipment is compact and can move freely in a narrow space, and has good steering ability.
3. Simple operation: the control system is simple and easy to understand, the operator only needs to carry out simple instructions to realize the control of the equipment.
4. Safe and reliable: adopting hydraulic system, it can ensure the goods lifting and placing smoothly, and has the function of preventing accidents.
