Place of Origin: | China |
---|---|
Brand Name: | KAD |
Certification: | CE |
Model Number: | CBD |
Minimum Order Quantity: | 1unit |
Price: | $2300- $3000/ Unit |
Packaging Details: | iron pallet +plastic film |
Delivery Time: | 15 working days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Product Name: | Full Electric Pallet Truck | Load Weight: | 2000-3000kg |
---|---|---|---|
Battery: | 24v/210Ah | Tire: | PU Wheel |
Weight: | 670KG | Fork Length: | 1150mm |
Fork Width: | 550mm | Warranty: | 1 Year |
Highlight: | 6613lbs Electric Powered Pallet Truck,5511lbs Electric Powered Pallet Truck,4409lbs Electric Powered Pallet Truck |

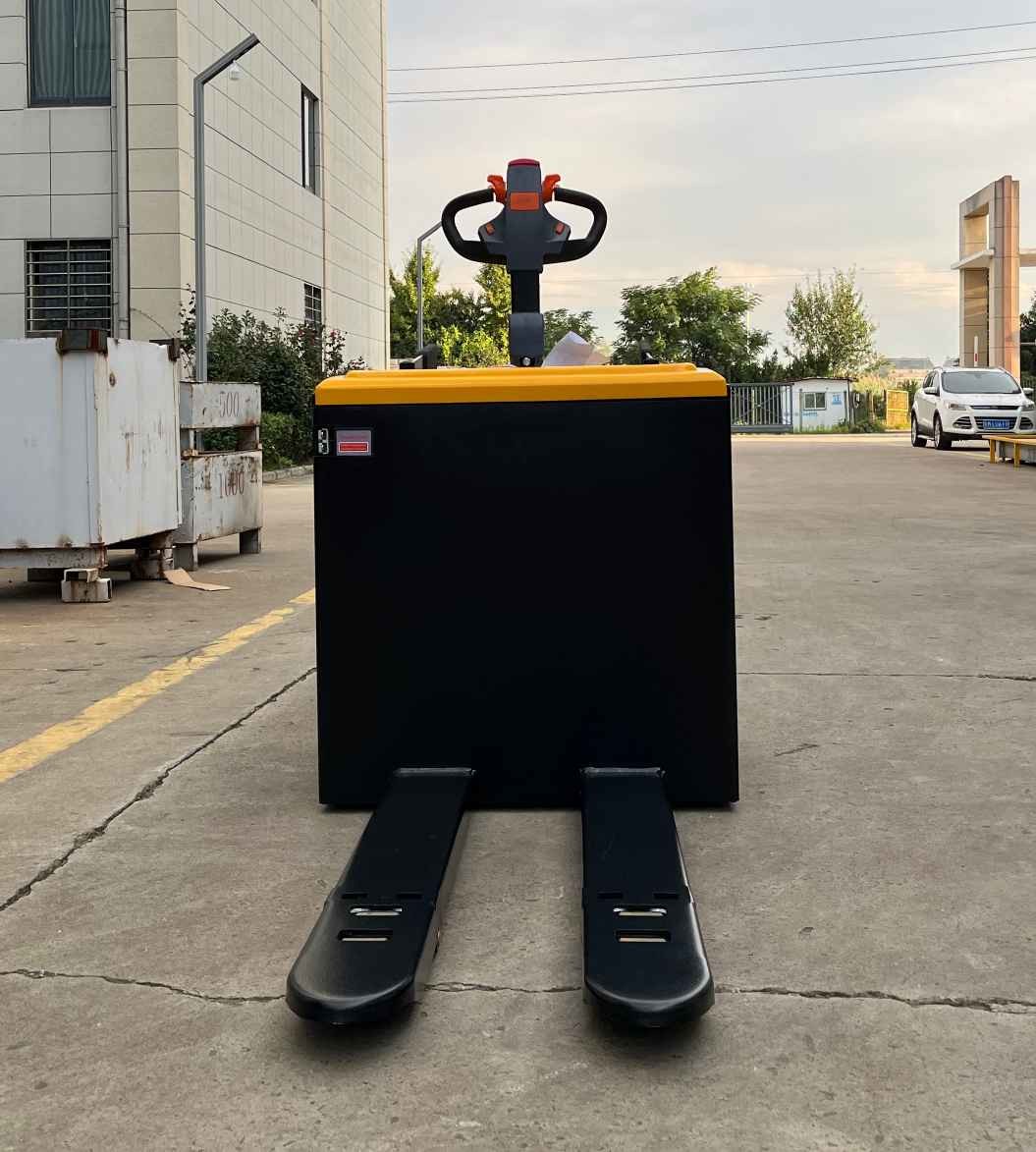

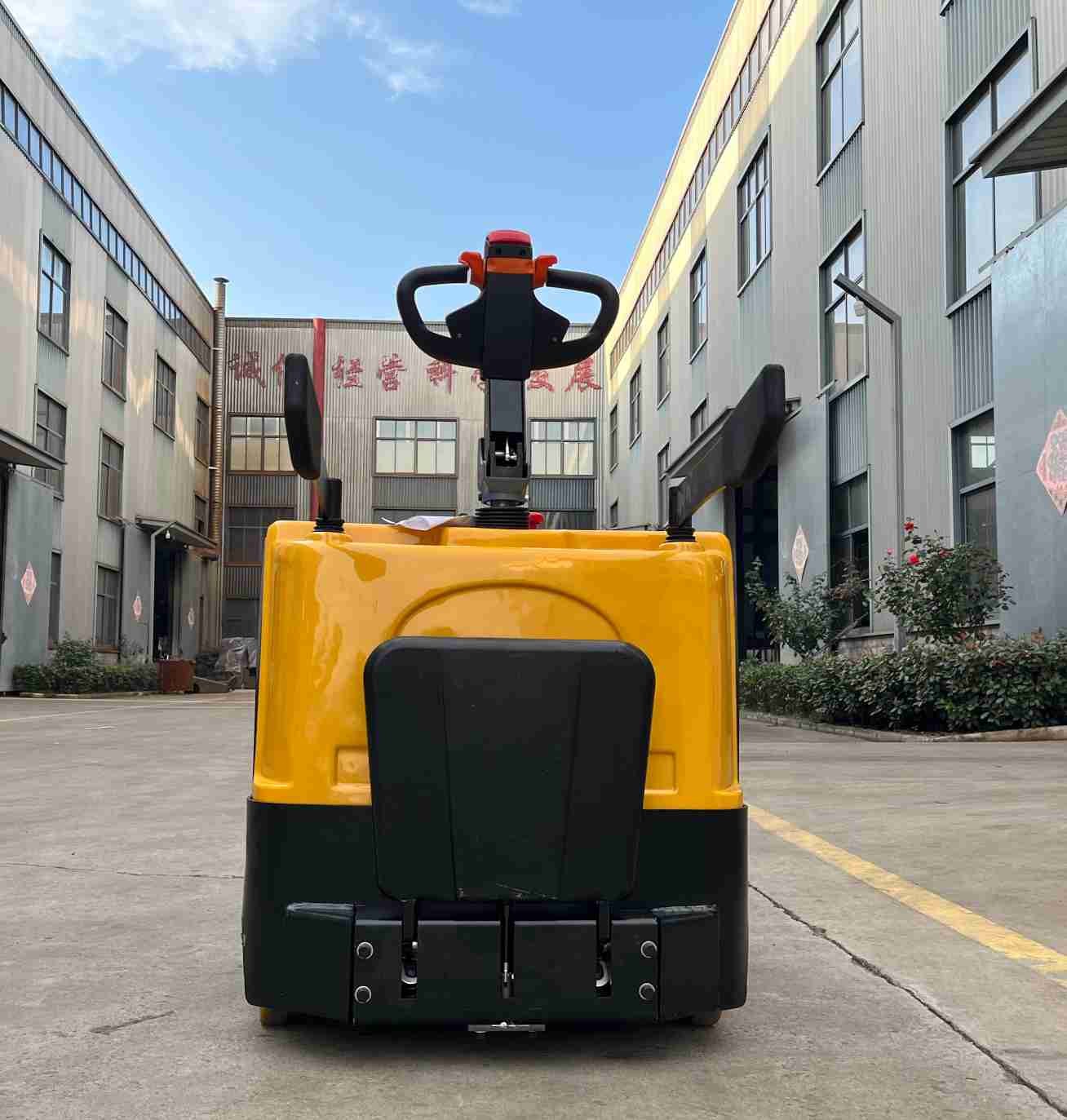

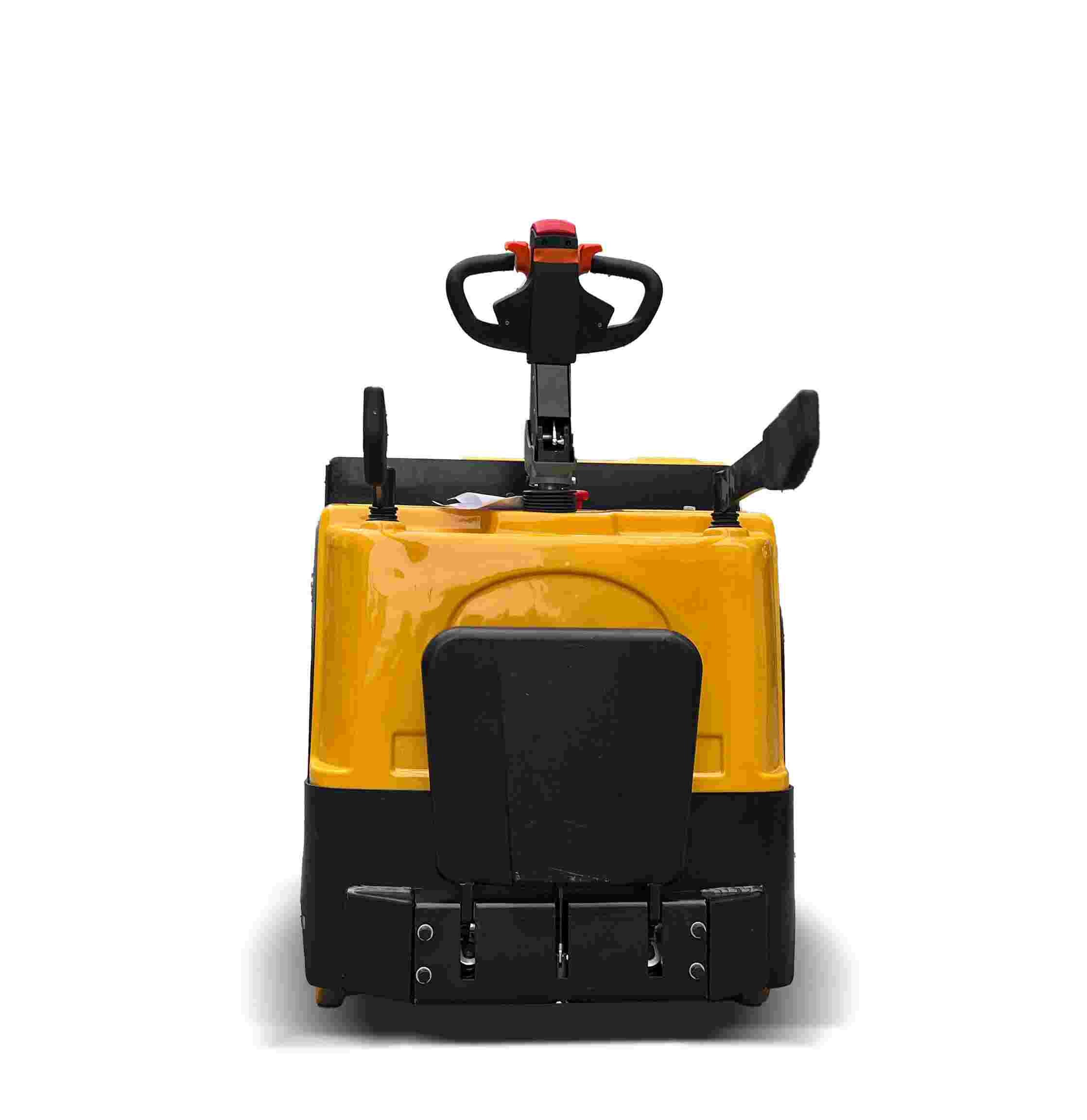

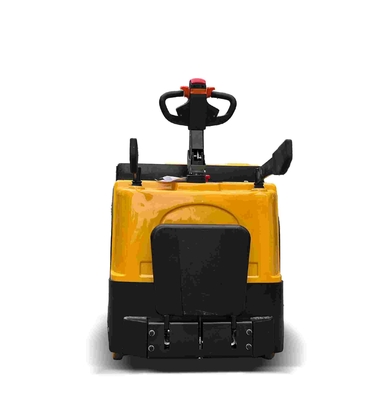

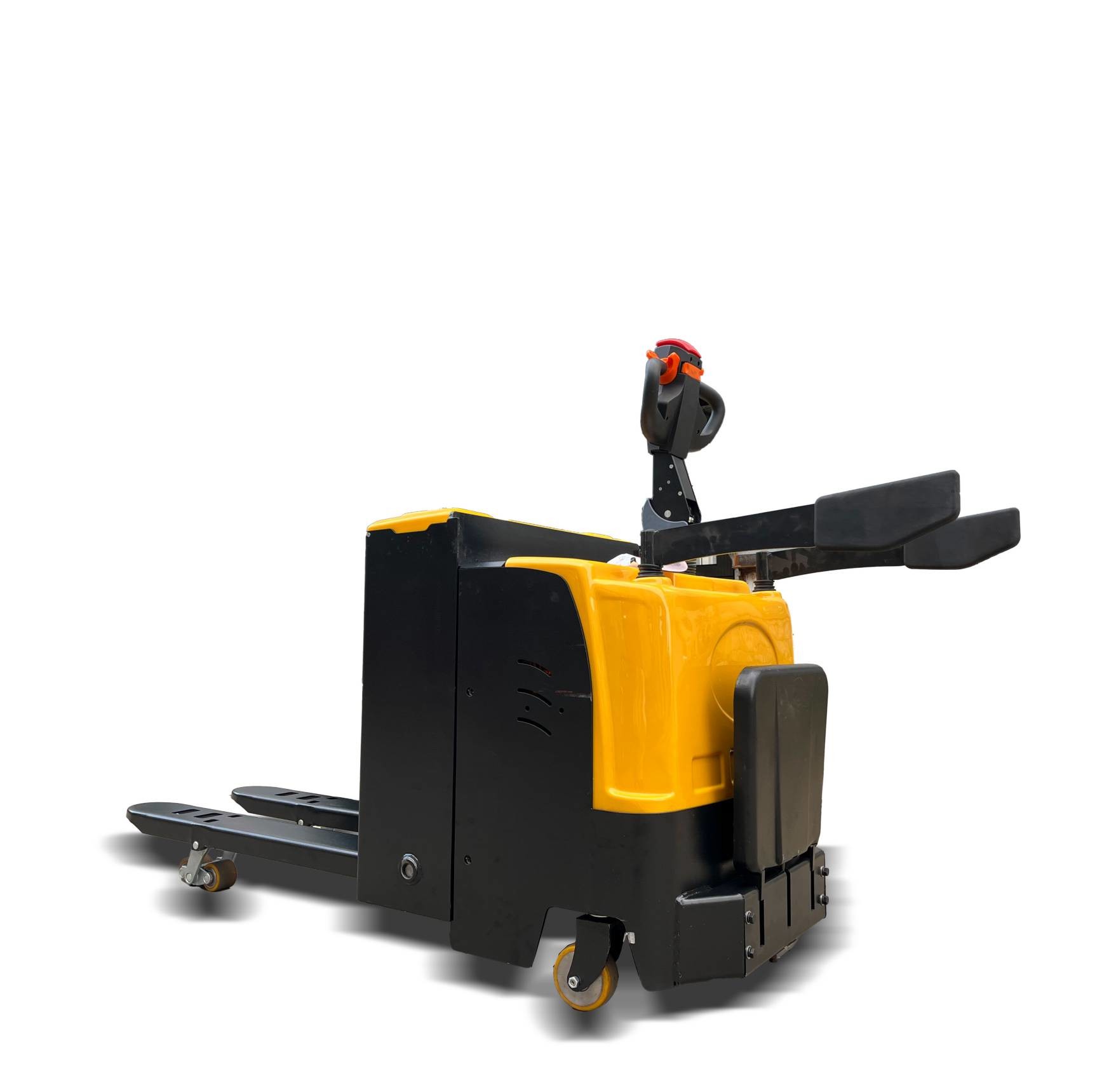

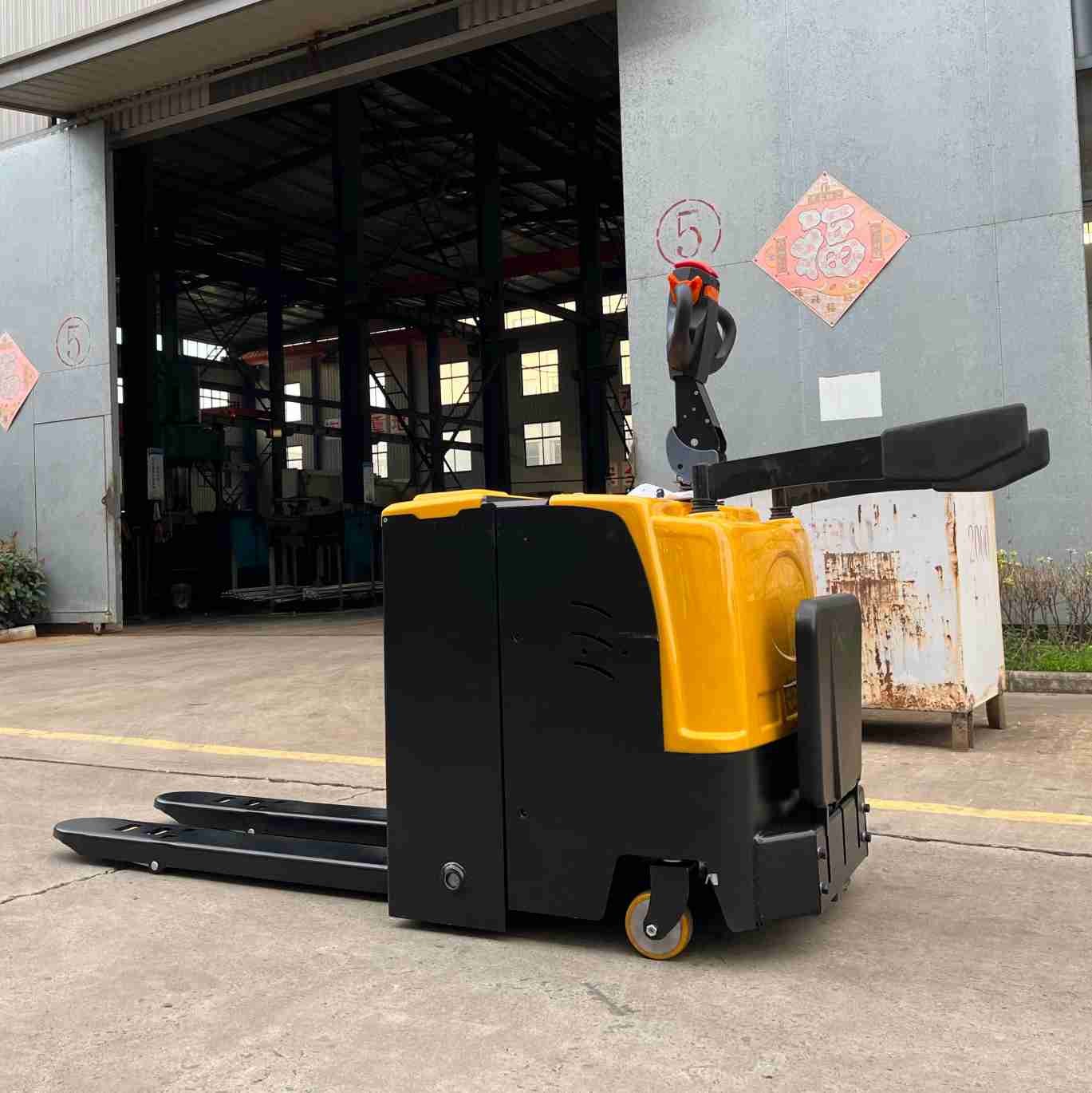

4409lbs 5511lbs 6613lbs Full electric Hydraulic Powered Electric Pallet Truck with safe arms
A full electric pallet truck offers several advantages. Firstly, it is environmentally friendly, as it produces zero emissions, making it suitable for indoor and warehouse use. It also reduces operational costs, as electricity is generally cheaper than fuel. Electric pallet trucks are quieter than their gas-powered counterparts, creating a more comfortable working environment. They require less maintenance due to fewer moving parts, which enhances reliability and longevity. Additionally, they are easier to operate, with user-friendly controls and better maneuverability, leading to increased productivity and safety in material handling tasks.
Model
|
|
CBD20
|
CBD30
|
Drive mode
|
|
Electric
|
Electric
|
Drive way
|
|
Standing
|
Standing
|
Load capacity
|
Q(kg)
|
2000
|
3000
|
Load center
|
c(mm)
|
600
|
600
|
Front overhang
|
x(mm)
|
875/945
|
945
|
Wheelbase
|
y(mm)
|
1271/1341
|
1341
|
Weight
|
kg
|
650
|
685
|
Axis Load, Front/Rear Axis at Full Load
|
kg
|
1300/1410
|
1505/1745
|
Axis Load, Front/Rear Axis at No Load
|
kg
|
600/110
|
630/120
|
Wheel
|
|
polyurethane
|
polyurethane
|
Wheel size,front wheel
|
|
Φ250×70
|
Φ250×70
|
Wheel size,rear wheel
|
|
Φ82×126(98)
|
Φ82×126(98)
|
Training Wheel
|
|
Φ127×57
|
Φ127×57
|
Wheel,Front/Rear Quantity(X=drive wheel)
|
|
1×+2/4
|
1×+2/4
|
Front wheelbase
|
b10(mm)
|
490
|
490
|
Rear wheelbase
|
b11(mm)
|
370/505
|
505
|
Lifting Height
|
h3(mm)
|
120
|
120
|
Min/Max height of Operating Handle when driving
|
h14(mm)
|
1150/1430
|
1150/1430
|
Min.Height
|
h13(mm)
|
82
|
82
|
Length
|
l1(mm)
|
1780/1850
|
1850
|
Fork length
|
l2(mm)
|
1220
|
1220
|
Width
|
b1(mm)
|
775
|
775
|
Fork size
|
s/e/l(mm)
|
55×170×1150/1220
|
55×170×1220
|
Fork width
|
b5(mm)
|
550/685
|
550/685
|
Ground clearance
|
m2(mm)
|
30
|
30
|
Passway width,Pallet 1000*1200
|
Ast(mm)
|
1910/1960/2030
|
1985/2035/2105
|
Passway width,Pallet 800*1200
|
Ast(mm)
|
2010/2010/2030
|
2085/2085/2105
|
Turning Radius
|
Wa(mm)
|
1600/1700
|
1700
|
Drive speed,Full/Empty Load
|
Km/h
|
7.9/8
|
6.9/7
|
Lift speed,Full/Empty Load
|
m/s
|
0.039/0.056
|
0.039/0.056
|
Decend speed,Full/Empty Load
|
m/s
|
0.064/0.050
|
0.064/0.050
|
Slope,Full/Empty Load
|
%
|
6/12(8/15)
|
6/12(8/15)
|
Gradeability,Full/Empty Load
|
%
|
8/20(12/20)
|
6/20(10/20)
|
Brake
|
|
Electromagnetic
|
Electromagnetic
|
Drive motor power
|
kw
|
1.2(1.5)
|
1.5(1.5)
|
Lift motor power
|
kw
|
1.2
|
2.2
|
Battery volt/capacity
|
V/Ah
|
24/210
|
24/210
|
Battery weight
|
kg
|
180
|
180
|
Battery size(Length*Width*Height)
|
mm
|
750*170*534
|
750*170*534
|
Noise level DIN12053
|
dB(A)
|
70
|
70
|
1. Small body, light weight, can work in narrow passage, full load into elevator, and can work in light load floor.
2. All the control parts are concentrated at the end of the handlebars, which is easy to operate and does not require professional driving.
3. Using efficient AC traction motor has large traction force, walking speed and can bear heavy material handling.
4. The lifting system adopts the integral hydraulic pump station. When the lifting button is activated, the material can be lifted gently, the drop button is activated, and the hydraulic cylinder can be automatically restored, and the material can be slowly lowered.
5. The latest stepless speed regulation system of MOS transistor is selected for walking speed control. When operating, the speed of forward and backward can be controlled according to the loaded goods, surrounding environment and random control. If imported stepless speed regulation system is selected, a number of control procedures can be compiled, and the effect is better.
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
