Taizhou Kayond Machinery Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Taizhou KAD Electromechanical Co., Ltd. |
| Certification: | CE |
| Model Number: | ME900-1 |
| Minimum Order Quantity: | 1 Unit |
| Price: | $800-$1000/unit |
| Packaging Details: | iron pallet and plastic film |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 Units |
| Lift Capacity: | 130kg | Working Height Max: | 4-10m |
|---|---|---|---|
| Platform Height Max: | 9m | Length: | 1.34m |
| Width: | 0.85 | Height: | 2m |
| Platform Size: | 0.60*0.55m | Outrigger Footprint: | 1.70*1.67 |
| Weight(AC): | 370kg | ||
| Highlight: | Single Mast Scissor Lift,Aluminum Alloy Scissor Lift,First Class Scissor Lift |
||

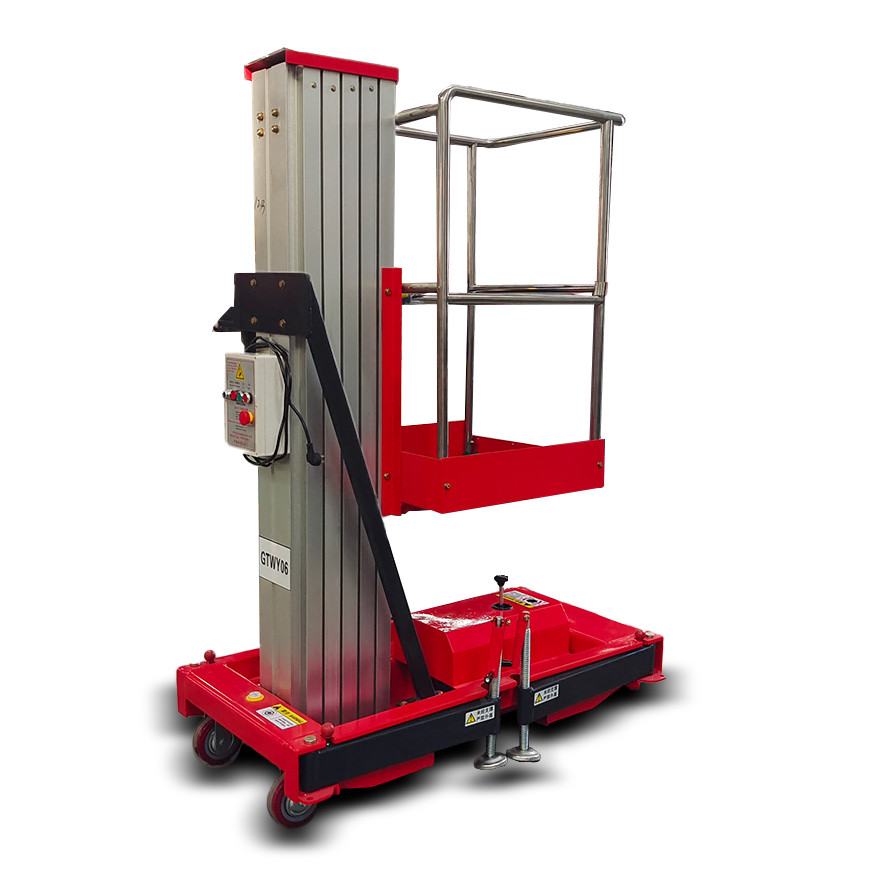

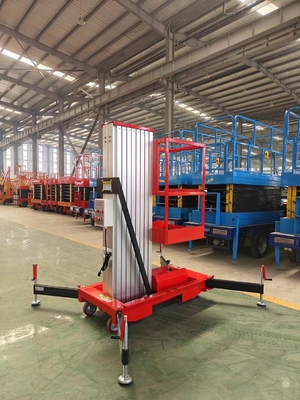

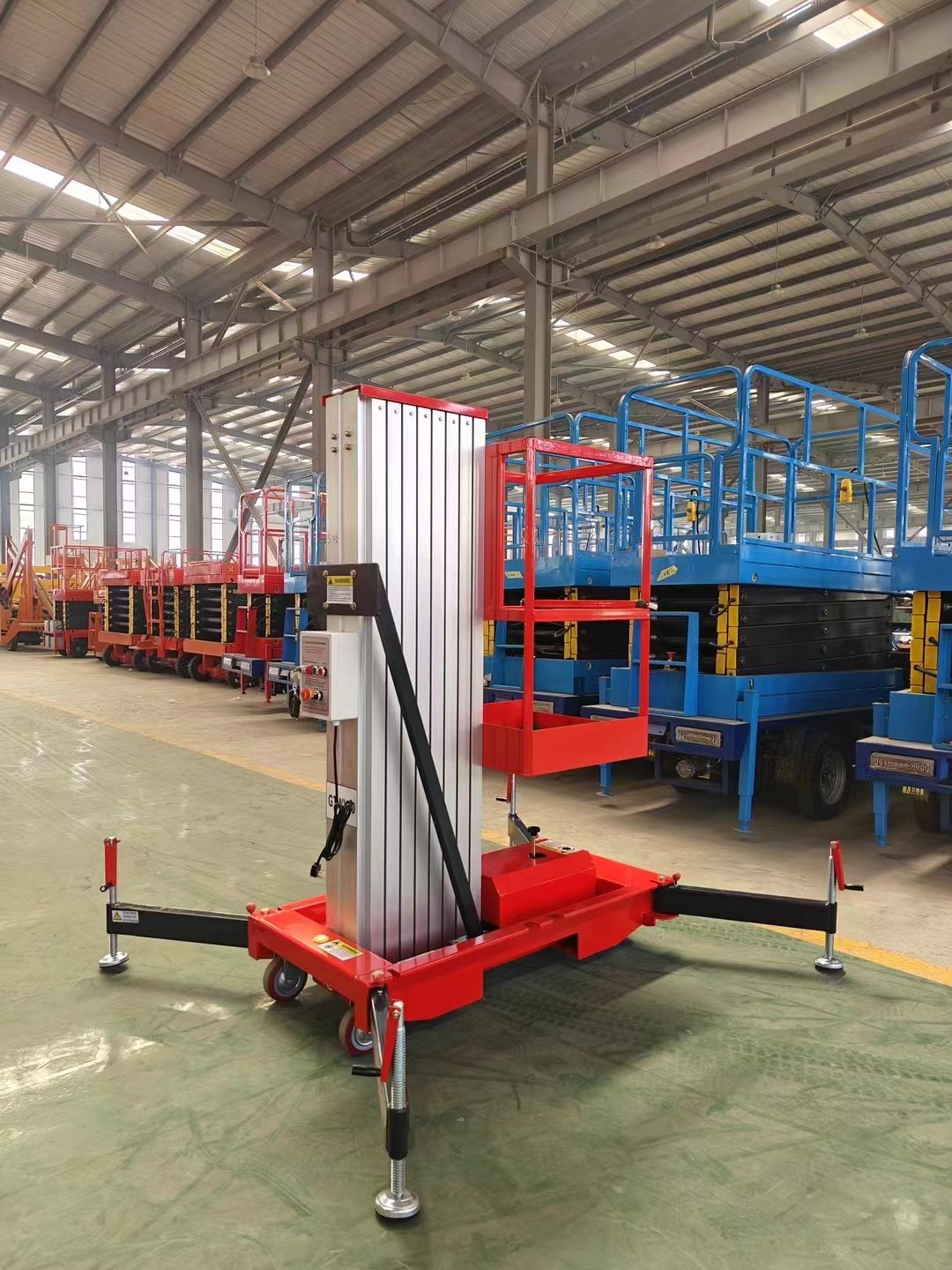

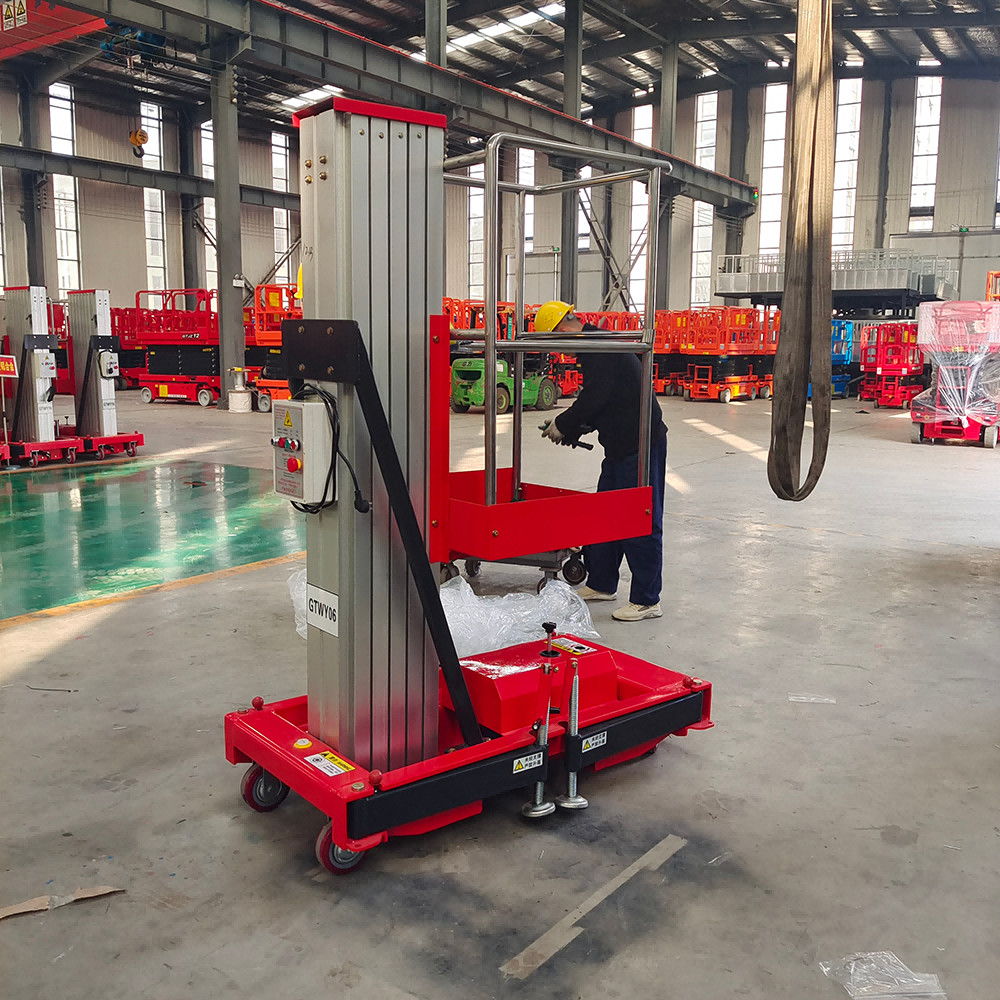

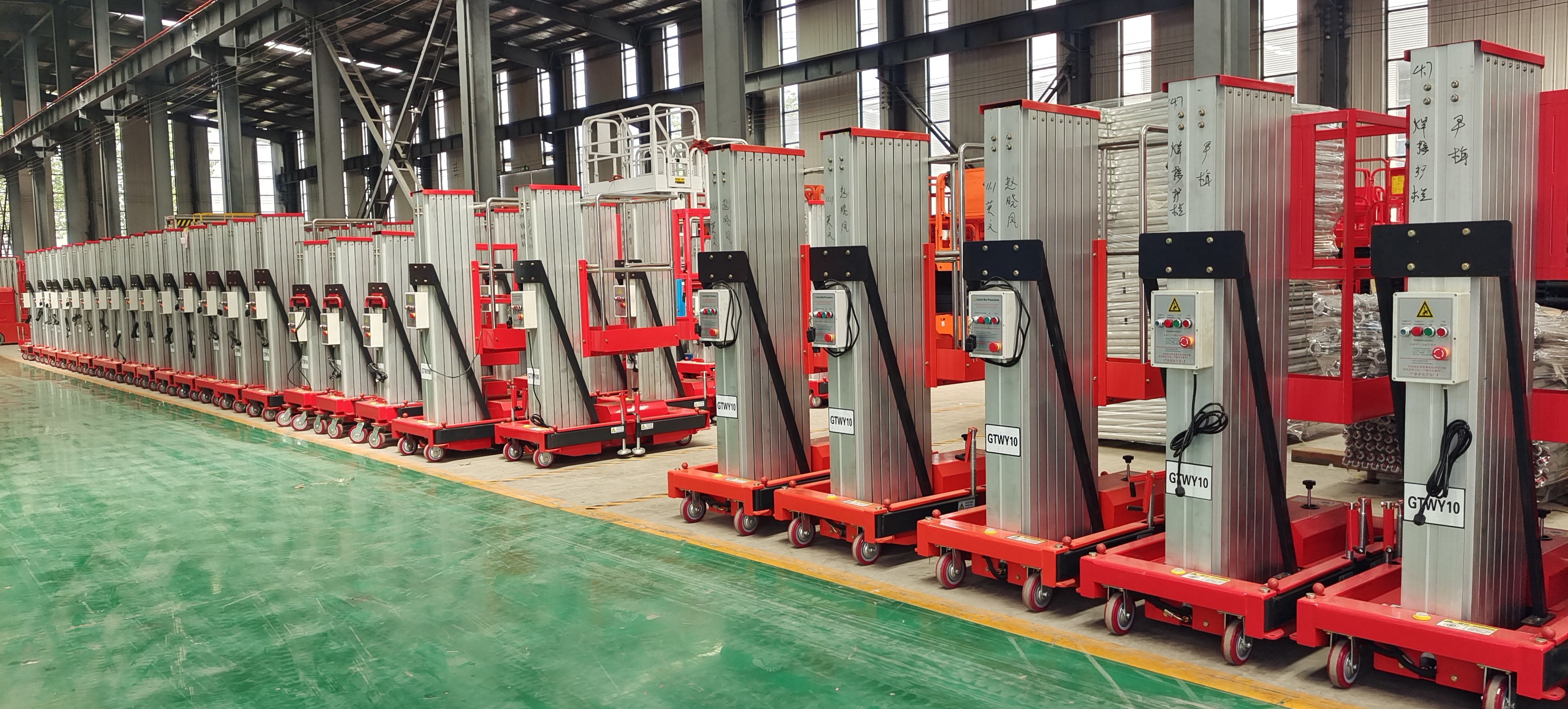

The advantages of aluminum alloy single mast elevators include the following:
Lightweight and easy to operate: This machine is made of aluminum alloy, which is lightweight, easy to transport and operate, and particularly suitable for indoor work.
Good structural stability: Aluminum alloy materials are not only lightweight, but also have high strength. This design ensures stable performance even at higher altitudes.
Strong corrosion resistance: Aluminum alloy has excellent corrosion resistance, which extends the service life of elevators in various environments and reduces maintenance costs.
Height adjustable: Single mast elevators typically provide a moderate working height to meet the requirements of many use cases, especially in factories, shopping malls, hotels, and similar high-altitude workplaces.
High safety: It is usually equipped with multiple safety features, such as guardrails and safety locks, to ensure the safety of operators.
Environmental protection and energy conservation: Due to its light weight, easy operation, and low energy consumption, it is very suitable for situations that require frequent movement or use in multiple locations.
| Model | ME600-1 | ME800-1 | ME900-1 | ME1000-1 | ||
| Lift capacity | kg | 130 | 130 | 130 | 130 | |
| Platform occupancy max | 1 | 1 | 1 | 1 | ||
| Working height max | m | 8 | 10 | 11 | 12 | |
| Platform height max | m | 6 | 8 | 9 | 10 | |
| Stowed length | m | 1.34 | 1.34 | 1.45 | 1.45 | |
| Stowed width | m | 0.85 | 0.85 | 0.85 | 0.85 | |
| Stowed height | m | 2 | 2 | 2 | 2 | |
| Platform size | m | 0.60*0.55 | 0.60*0.55 | 0.60*0.55 | 0.60*0.55 | |
| Outrigger Footprint | m | 1.70*1.67 | 1.70*1.67 | 1.93*1.77 | 1.93*1.77 | |
| Ground clearance | m | 0.05 | 0.05 | 0.55 | 0.05 | |
| Lifting motor(AC) | kw | 0.75 | 0.75 | 0.75 | 0.75 | |
| Weight(AC) | kg | 370 | 390 | 400 | 420 | |
Optional Configurations |
Power source | V/ah | 24/80 | 24/80 | 24/80 | 24/80 |
| Lifting motor(DC) | kw | 0.8 | 0.8 | 0.8 | 0.8 | |
| Charger | V/ah | 24/15 | 24/15 | 24/15 | 24/15 | |
Single pole aluminum alloy lifting platform is a tool with strong adaptability and high efficiency, specially tailored for various industrial environments. This platform is made of high-quality aluminum alloy, with a stylish and flexible design, making it an ideal choice for contemporary industrial tasks.
This lifting platform stands out due to its compact size and multifunctional height adjustment function. Its intuitive design simplifies height modifications, allowing for easy lifting of materials or products at different heights. Its simple infrastructure requirements ensure easy installation and integration into various production lines or storage spaces.
This platform adopts advanced hydraulic system, with stable and stable performance, minimal noise, and extremely high reliability. The design of hydraulic mechanisms aims to meet the precision requirements of industrial improvement while optimizing energy efficiency to ensure consistent operation without unnecessary energy consumption.
Safety is a key feature of this aluminum alloy lifting platform, equipped with key safety mechanisms such as anti fall locks and automatic brakes. These functions can be quickly activated in abnormal situations to prevent accidents, and the emergency stop button provides additional safety by quickly cutting off power when needed, ensuring a safe working environment for operators.
The platform is made of lightweight and durable aluminum alloy, which enhances its load-bearing capacity and maneuverability, and has significant advantages compared to traditional lifting equipment. This design improves flexibility and mobility without sacrificing strength or stability.
In summary, the monopolar aluminum alloy lifting platform is a complex industrial lifting solution characterized by compact design, adjustable height, user-friendly hydraulic operation, and powerful safety functions. It significantly improves operational efficiency, reduces labor costs, and achieves modernization of industrial process reliability and accuracy. With the development of industrial technology, the adoption of advanced lifting platforms may increase, thereby further improving productivity in various industries.
